GHS.JEM (LIMITED EDITION) - **EXTRA**

Regular price₱34,490.00
/

Weight Options
PCB Options (With GHS.JEM Daughterboard)
Plate Options
  • In stock, ready to ship
  • Inventory on the way

NOTE: This is a Group Buy. Shipping will commence when production/manufacturing has been completed.

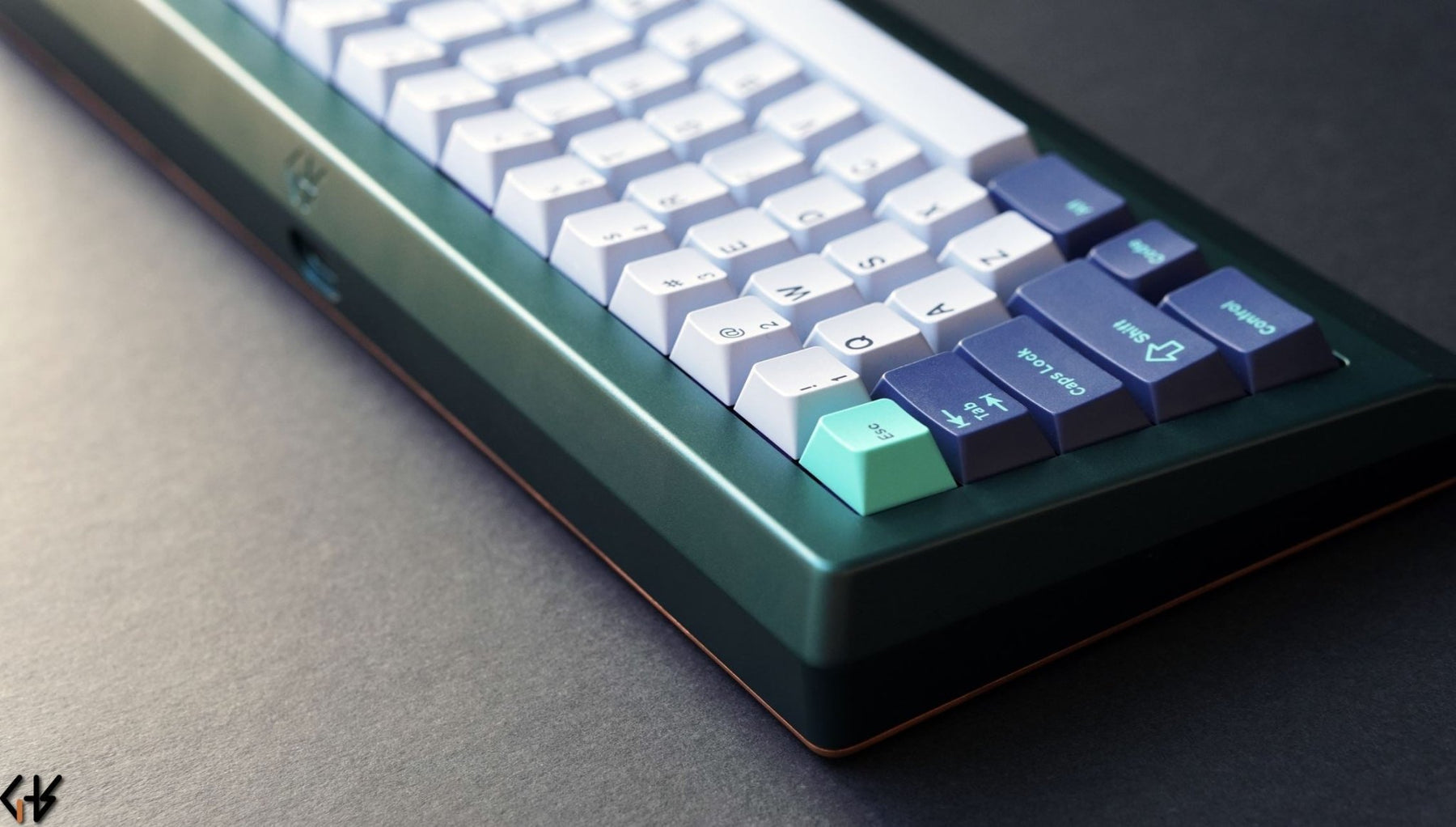

Screwless seamless 65% keyboard
by Gone Hacking Studio.


Inspired by the Cherry G80-1800 but with a modern twist. It’s a minimalistic approach to a timeless classic design. Our aim is to be able to design bespoke mechanical keyboards without compromising quality.

The PCB has tabs that you attach silicone sleeves onto. It then fits snugly into the case. Plateless is an option. Please keep in mind that half plates are not to be used with hot-swap PCB builds.



Cad Design by RDG

PCB/Daughterboard Design by RMI




Specifications

Top and Bottom material   Aluminum 6063 Anodised (Argent, Noir, Azul, Blanc & Jade)
Plate material   Refer to Kit Content and Add Ons
Colors available   Argent (Silver), Noir (Black), Azul (Blue), Blanc (White), Jade (Limited Edition)
PCB   Matte black, ENIG finish, 1.2mm PCB with flex cuts (Solderable and Hotswap)
Weight material   Sandblasted brass with clear coat (standard kits)
  Sandblasted brass or copper (limited kits)
  Optional upgrades to mirror-finish stainless steel, or dark PVD brass
Dimensions  
331mm × 134mm × 37mm
Typing angle   6.9°
Case weight  
3.3kg

 **Half Plates cannot be used with hot-swap PCBs**

Kit Contents

Four (4)   M2x4 Hex Screws
Eight (8)   M2x6 Hex Screws
Four (4)   M2.5x25 Hex Screws
Four (4)   M2.5x12 Hex Screws
Twenty (20)   GHS Silicon Sleeve Gasket [A40]
Twelve (12) FR4 Shims
One (1)   GHS.JEM PCB (Solder or Hotswap)
One (1)   Aluminum silver anodized full plate for Standard Edition, Brass Silver PVD full plate (default), or any of the offered GHS.JEM plate add on for Limited Edition
One (1)   GHS USB-C Daughterboard
One (1)   GHS Daughterboard JST cable
Four (4)   GHS.JEM Silicone Bump On Strips
One (1)   GHS.JEM Aluminium Anodised Top
One (1)   GHS.JEM Aluminium Anodised Bottom
One (1)   GHS.JEM Sandblasted Brass weight for Standard Edition, Sandblasted Brass or Copper weight for Limited Edition.
